Thermal treatment section

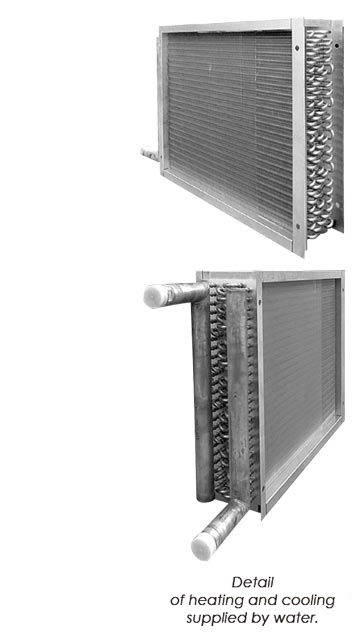

PageTermico01_enHeating coils and water cooling coils.

They are made with copper pipes and aluminium fins (upon request pre-paint aluminium, copper, tinned copper). The standard geometry is P6030 with 5/8” pipes. Collectors are made of copper, provided with nipples for air vent and draining. Cooling coils are provided with internal aluminium condensate drain pan (stainless steel upon request).

Steam heating coils.

Pipes are made of steel and fin made of aluminium, collectors are made of steel.
Pipes are sloped for an optimal condensate draining

Direct expansion coils.

The pipes are made of copper and fins are made of aluminium (upon request pre-painted aluminium, copper, tinned copper).
The standard geometry is triangular mesh P3012. Collectors are made of copper, with distributor at the inlet. Direct expansion coils are provided with internal aluminium condensate drain pan (stainless steel upon request).

Electric coils.

With reinforced finned pipes heating elements, three-phase, provided with manual safety recovery thermostat.

NB: tutti i raccordi delle batterie sporgenti dai pannelli di tamponatura, sono muniti di guarnizioni in gomma, adatte a garantire la totale ermeticità.Inoltre in prossimità delle uscite dei collettori delle batterie, sono applicate targhe relative all’entrata ed all’uscita dell’acqua.
