Humidification section

Throwaway water humidifier (UPP-100/200)

Adiabatic humidification with evaporation pad and throwaway water, extractible pad made of treated cellulose, 100 or 200 mm thickness. Aluminium drain pan (stainless steel optional), with threaded fittings for supply and drain.

Evaporation pad humidifier with recirculation pump (UPR-100/200)

Adiabatic humidification with evaporation pad and recirculation pump. Aluminium drain pan (stainless steel optional), with threaded fittings for supply, overflow and drain, provided with stainless steel filter, filling float valve and flowrate adjusting valve. The pad made of treated cellulose is extractible, 100 or 200 mm thickness.

Steam humidifier

Its supplied with distributor pipe with condensate recovery, condensate drain pan made of aluminium (stainless steel optional) and droplet separator. Filter. Supply valve and condensate separator are supplied upon request only.

Steam humidifier with dipped electrodes generator

Its supplied with distributor pipe with condensate recovery, condensate drain pan made of aluminium (stainless steel optional) and droplet separator, dipped electrodes producer, provided with modulating electronic control arranged for proportional signal from an external regulator (not supplied) and power circuit.

Atomising humidifier (with pressurised water only)

Its supplied with stainless steel ramp with atomising head made of AISI 316, cabinet with on-off or modulating setting, condensate drain pan made of aluminium (stainless steel optional), droplet separator

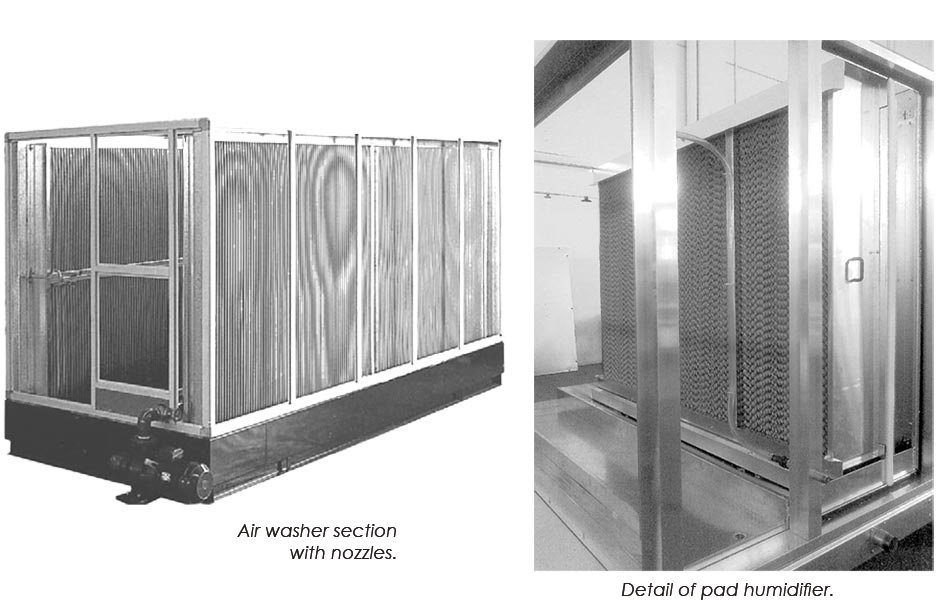

Nozzles humidifier

Its provided with: – double chamber housing casing – internal chamber made of galvanised sheet (aluminium or stainless steel optional) – aluminium drain pan (stainless steel optional) – inlet air strengthener – outlet droplet separator – one or two nozzles ramps (according to the efficiency required) – recirculation electropump (throwaway water humidification excluded) – inlet water stainless mesh filter – flowrate adjusting valve – overflow and drain – fill float valve.

Nozzles humidifier types
UUP: (address to the headoffice for this type) 1 counter-current ramp – throwaway water.
UUR1: 1 countercurrent ramp – recirculation through pump.
UUR2: 2 equi/countercurrent ramps – recirculation through pump.
Air washers (address to the headoffice for this type)

NB: In caso di raffreddamento con deumidificazione, o di umidificazione, va tenuto presente che la condensa o acqua possono essere trascinate a valle dal moto stesso dell’aria se questa supera determinate velocità, consigliamo quindi di applicare un trattenitore di gocce.
