Heat recovery system

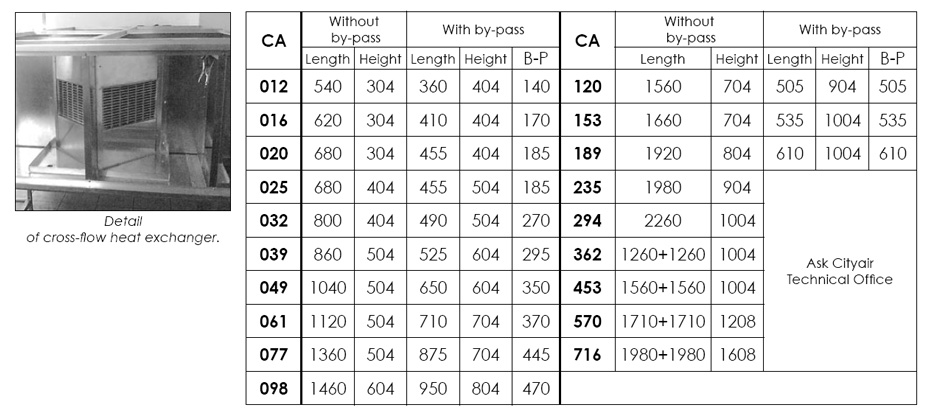

Cross-flow static heat exchanger

Aluminium plate heat exchanger (as option pre-painted aluminium or stainless steel). The heat exchanger is housed in a proper casing provided with inlet filters (G4 efficiency) and with condensate drain pan made of aluminium. The casing can include the recirculation damper to operate also with three-damper group, while the heat exchanger can be provided with by-pass camper allowing a free-cooling operation.

nuovo italiano

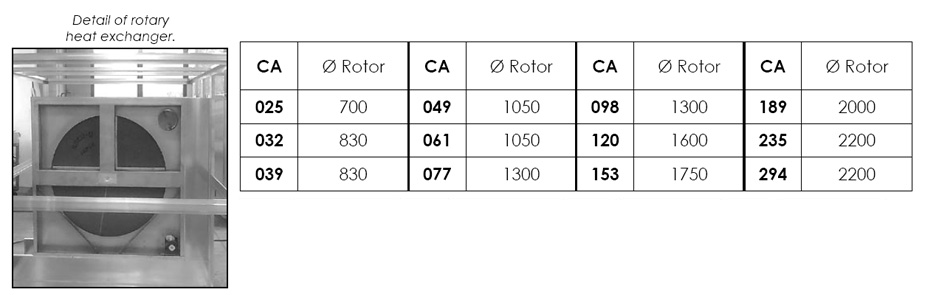

Rotary heat exchangers

Wheel heat exchanger, provided with constant or variable speed motor and control panel. Aluminium wheel for the sensible heat and/or with hygroscopic treatment for latent heat recovery. The heat exchanger can be provided with inlet filters (G4 efficiency).nuovo italiano
